Polypropylene 20L/Min 8 Micron Carbon Fiber PCF Pharmaceutical Filters

Name: Polypropylene 20LMin 8 Micron Carbon Fiber PCF Pharmaceutical Filters
Brand: PULLNER
Price: 1 USD

Buy cheap Polypropylene 20L/Min 8 Micron Carbon Fiber PCF Pharmaceutical Filters product

Brand Name : PULLNER

Model Number : PCF

Certification : ISO 9001/FDA

Place of Origin : China

MOQ : 10

Price : USD + 30 + pieces

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 + pieces + per month

Delivery Time : 15 days

Packaging Details : Carton packing

Filter material : Carton fiber

diversion lay : polypropylene

Core/cage : polypropylene

length : 10'' to 40''

Iodine adsorption : 8000 to 1600 mg/g

Contact Now

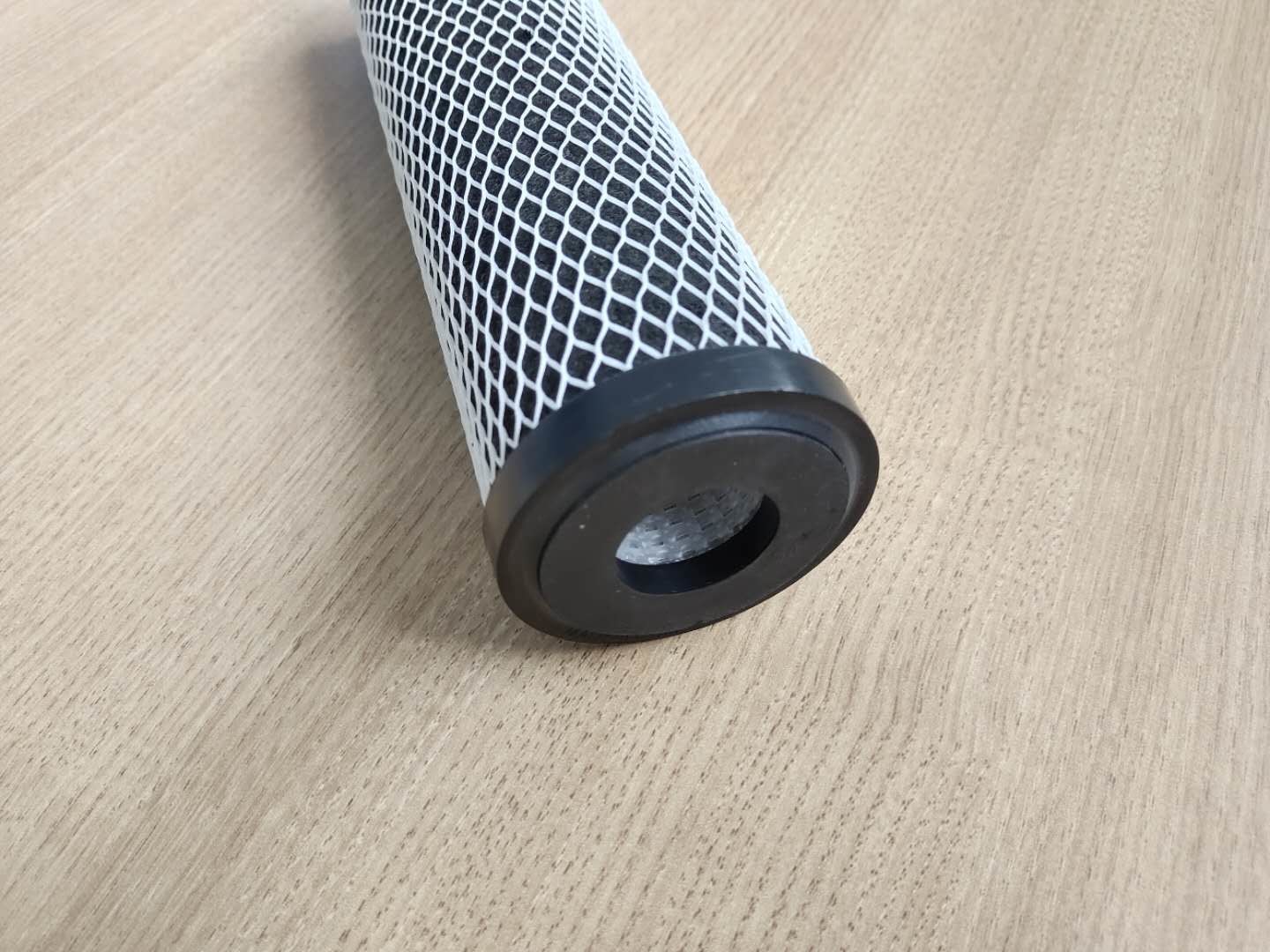

The PCF series carbon fiber filter cartridge is made of high-efficiency active adsorption material and environmentally friendly functional material activated carbon fiber. It is an updated product of activated carbon, especially with strong adsorption capacity for chlorine and organic odors. It is widely used in the filtration of deodorization, decolorization and organic removal in the beer production process.

Materials Construction

Filter Media

Carbon Fiber

Support/Drainage

Polypropylene (PP)

Cage/Core/End Caps

Core:SS304 Or Polypropylene

Other: Polypropylene

Operating Characteristic

Maximum Operating Temperature	80℃
Maximum Operating Difference Pressure	4bar/21℃
	2.4bar/80℃

Filtration micron and Filtration Area

Filtration micron	Iodine adsorption(mg/g)
08	800
10	1000
16	1600

Ordering Information

PCF 10 08 W

Series	Length		Micron	End Cap Type
PCF	10	=10"	08	W	=Gasket(Standard)
	20	=20"	10	H	=PE Gasket
	30	=30"	16	C1	=226/Spear
	40	=40"		C3	=222/Spear
				C5	=222/Flat
				C6	=226/Flat
				C9	=DOE
